GS-A901 1D/2D CMOS Pos Barcode Scanner for Supermarket

GS-A901 POS Baecode Scanner Feature:

1.USB COM,RS232,USB HID,HID POS interface
2.Input voltage:DC 5V+-10%
3.Reading accuracy :4mils
4.Can scan regular barcodes, QR codes, payment codes, and quickly decode

Availability:

Quantity:



Inquire Add to Basket

Model:
GS-A901
Brand:
GSAN

Product Description

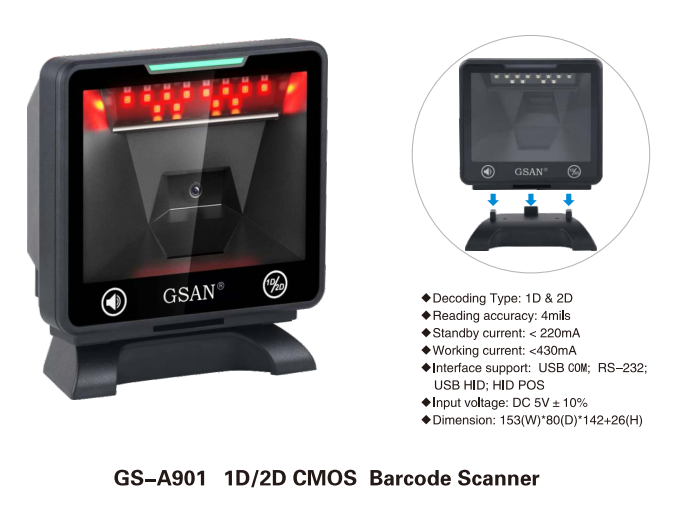

1D 2D barcode scanner

◆Decoding Type: 1D & 2D

◆Reading accuracy: 4mils

◆Standby current: < 220mA

◆Working current: <430mA

◆Interface support: USB COM; RS-232;USB HID; HID POS

◆Input voltage: DC 5V±10%

◆Dimension: 153(W)*80(D)*142+26(H)

GS-A901 1D/2D Barcode Scanner Specifications

Image Sensor	640 x 480 CMOS Red
Lumination	LED
Reading accuracy	0.102mm/4mils
Reading angle	Angle of rotation 360 °, elevation angle ± 60 °, deviation angle ± 65 °
Symbologies
2D	Aztec Code; Data Matrix; Maxi Code; QR Code;HAN XIN; Micro OR Code
Stack code	GS1 DataBarExpanded Stacked;GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional;GS1 DataBar composite:MicroPDF417:PDF417
Depth of Field
The minimum depth of field is determined by the barcode length and scanning angle. It depends on the printing resolution, contrast, and ambient light.
Symbol Contrast	≥ 20%
Mechanical/Electrical
Interface	RS-232, USB COM,USB HID,HID POS
Operating Voltage	5 VDC ±10%
Operating Current	<430mA
Sleep Current	220mA
Environment
Operating Voltage	DC 5 V
Working Temperature	-10ºC~+50ºC
Storage Temperature	-20ºC~+65ºC
Humidity	5% to 95% (non-condensing)
Ambient Light	0 ~ 100000 lux (natural light)
Color	Black
Material	ABS + EVA
Other
Language	Support multiple
Interface type	language RJ-45
Size	15014079mm
Cables	USB Cable
